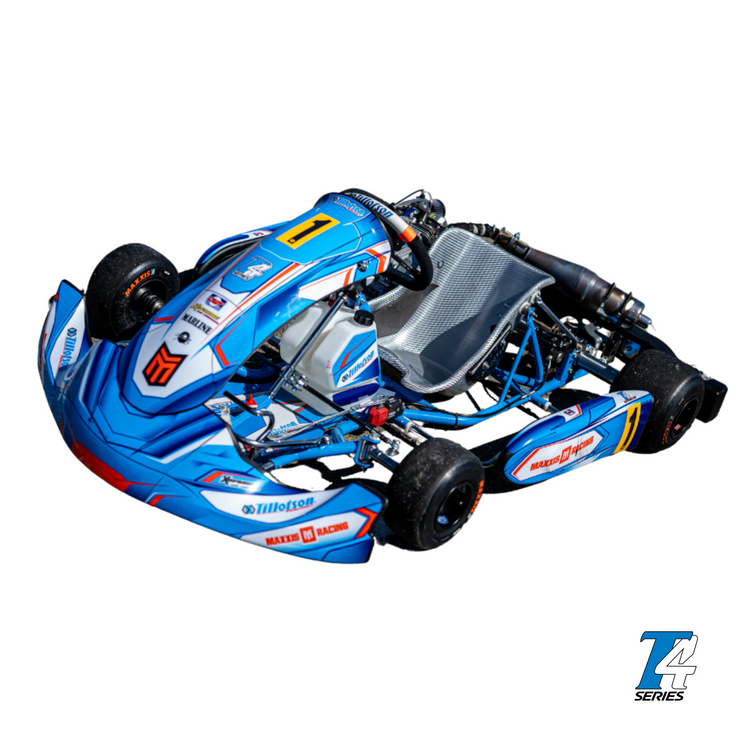

T4 SENIOR CHASSIS & 225RS ENGINE, COMPLETE PACKAGE

T4 SENIOR CHASSIS & 225RS ENGINE, COMPLETE PACKAGE

Name: T4 SENIOR CHASSIS & 225RS ENGINE, COMPLETE PACKAGE
Brand: RPM Racing Engines
SKU: T4-225RS-CS1-EUR-02
Price: 4504.64 GBP
Availability: InStock

£4,504.64

Shipping calculated at checkout.

Kart Trolley

Yes Please

No Thank-you

Pre-assemble

Yes (in-store colection)

[{"id":51558353928574,"title":"Yes Please \/ Yes (in-store colection)","option1":"Yes Please","option2":"Yes (in-store colection)","option3":null,"sku":"T4-225RS-CS1-EUR-02","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"T4 SENIOR CHASSIS \u0026 225RS ENGINE, COMPLETE PACKAGE - Yes Please \/ Yes (in-store colection)","public_title":"Yes Please \/ Yes (in-store colection)","options":["Yes Please","Yes (in-store colection)"],"price":450464,"weight":100000,"compare_at_price":null,"inventory_management":"shopify","barcode":"53928574","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":56997890064766,"title":"Yes Please \/ No","option1":"Yes Please","option2":"No","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"T4 SENIOR CHASSIS \u0026 225RS ENGINE, COMPLETE PACKAGE - Yes Please \/ No","public_title":"Yes Please \/ No","options":["Yes Please","No"],"price":435464,"weight":100000,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":51558353961342,"title":"No Thank-you \/ Yes (in-store colection)","option1":"No Thank-you","option2":"Yes (in-store colection)","option3":null,"sku":"T4-225RS-CS1-EUR-03","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"T4 SENIOR CHASSIS \u0026 225RS ENGINE, COMPLETE PACKAGE - No Thank-you \/ Yes (in-store colection)","public_title":"No Thank-you \/ Yes (in-store colection)","options":["No Thank-you","Yes (in-store colection)"],"price":428700,"weight":100000,"compare_at_price":null,"inventory_management":"shopify","barcode":"53961342","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":56997890097534,"title":"No Thank-you \/ No","option1":"No Thank-you","option2":"No","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"T4 SENIOR CHASSIS \u0026 225RS ENGINE, COMPLETE PACKAGE - No Thank-you \/ No","public_title":"No Thank-you \/ No","options":["No Thank-you","No"],"price":413700,"weight":100000,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}]

CHASSIS TILLOTSON T-CHS-CS1

Chassis

The T4-C1 chassis was designed specifically to suit the TPP-225RS engine with user friendliness in mind. The combination of the chassis and engine bring together optimum power and great handling to provide a fun and competitive race experience for both new drivers and seasoned karters. In order to maintain the low cost of the category, only stock parts such as the seat, axle and wheels are permitted for use on the T4-C1 chassis. User-related adjustments such as caster camber system, ride height and gearing configurations can be adjusted to suit driver preferences.

Engine

The TPP-225RS engine was developed by Tillotson with extensive field testing by national and international championship karters over the last three years. It features a completely new crankcase design which is heavily supported to allow a larger size piston compared to other common four stroke engines. The larger, 72mm diameter piston provides excellent torque in the lower rpm band and offers exceptional driveability, making it extremely user friendly for new drivers.

Some technical points:
Capacity: 225cc 4 Stroke
Power: 15HP
Engine Weight: 17kg

General Kart informations

• Overall weight 69kg to reduce fuel consumption and provide a more nimble driving experience
• PVL Digital Ignition limited to 7,500rpm
• Tillotson FM Series carburettor calibrated for the TPP-225RS engine
• Engine is sealed so no tuning is permitted—only adjustment to the valve clearance is allowed
• Up to 20 hours engine life without maintenance
• Billet CNC machined connecting rod/flywheel for improved strength and reliability
• New design Tillotson crankcase with extra support for the higher power output

Engine oil

Tillotson partnered with XERAMIC® Kart Lubricants to develop an oil that offers longer engine life and optimum lubrication. The oil can detect contamination or additives by inspecting it with a UV lamp to eliminate cheating. The 4-stroke oil is made exclusively for Tillotson.

Tyres

Tillotson has developed a tire specifically for the T4 Series in conjunction with Maxxis Tires designed to offer long life, sustained performance and suitable grip for a fun driving experience. The tires are available at our online shop.
